BLUEWAVE Active Power Filter
The BLUEWAVE 3-Level Active Power Filter utilizes advanced digital control and IGBT-based power electronics to monitor and neutralize harmonics in real time. By injecting an equal and opposite compensation current, it ensures a clean, fundamental frequency supply for non-linear loads.
Product Description
The BLUEWAVE Active Power Filter provides real-time harmonic compensation for non-linear loads by generating compensating currents to eliminate harmonic distortion. It supports harmonic filtering, reactive power compensation, and three-phase unbalance correction to improve overall power quality.

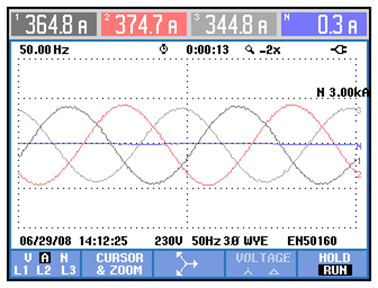

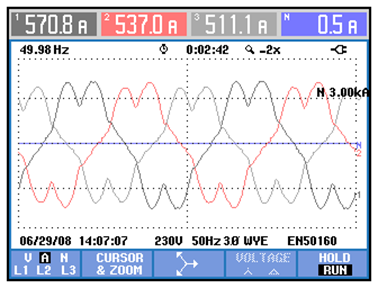

Before BLUEWAVE is put into operation, the current waveform of the system is seriously distorted, with poor power quality (Fig. 1); after BLUEWAVE is put into operation, the current waveform of the system is close to a sine wave, with less waveform distortion and higher power quality (Fig. 2).
Product Features
01
Outstanding Harmonic Mitigation
Effectively mitigates 2nd–50th harmonics with over 97% efficiency.
02
Reliable Protection
IP20-rated enclosure design.
03
Intelligent Multi-Mode Integration
Supports prioritized combinations of harmonic filtering, reactive power compensation, and three-phase unbalance correction.
04
Rapid Dynamic Response
Total response time of ≤ 5 ms, ideal for rapidly changing industrial loads.
Technical Parameters
|
Rated Operating Voltage |
AC210V±20% |
AC400V±20% |
AC480V±15% AC690V±15% |
|
|
Rated Overload Capacity |
1.2 × rated current for 1 min, 2.5 × rated current for 10 ms |
|||
|
Rated Operating Frequency |
50Hz±5% |
|||
|
Response Time |
≤5ms |
|||
|
Rated Capacity |
100A, 120A, 150A |
50A, 75A |
100A, 120A, 150A |
100A |
|
Wiring Mode |
3-phase 3-wire, 3-phase 4-wire |
3-phase 3-wire |
||
|
Cooling Mode |
Forced-air cooling |
|||
|
Ambient Temperature |
–10℃ to +40℃ (2%/K automatic derating above limit) |
|||
|
Relative Humidity |
Max. monthly average 90%, non-condensing (at monthly avg. min. 25℃) |
|||
|
Parallel Operation |
Supports multi-unit and mixed-capacity parallel operation |
|||
|
Communication |
RS-485, Modbus-RTU protocol | |||
|
Air Flow (Full Load) |
≥1100m³/h |
≥600m³/h |
≥1100m³/h |
≥1200m³/h |
|
Noise Level |
≤60dB |
≤60dB |
≤60dB |
≤65dB |
|
Harmonic Mitigation Range |
2nd–50th harmonics |
|||
|
Operation Modes |
Harmonic, Reactive Power, and Unbalance (Freely combinable with priority settings) |
|||
|
Operating Altitude |
≤2000 m |
|||
|
Dimensions (W×D×H) (mm) |
Drawer: 500×570×235 |
Wall-mounted: 505×200×554 |
Wall-mounted: 505×260×574 |
Drawer: 500×600×270 |
|
Weight |
37kg |
31.5kg |
37kg |
68kg |
|
Protection Rating |
Standard IP20 |
|||
|
Compliance Standard |
JB/T 11067-2011 (Low-voltage Active Power Filter) |
|||
|
Note: Other capacities and voltage levels are customizable upon request. |
||||
