LSVG Hybrid Dynamic Filtering and Compensation System

LSVG Hybrid Dynamic Filtering and Compensation System

LSVG Hybrid Dynamic Filtering and Compensation System

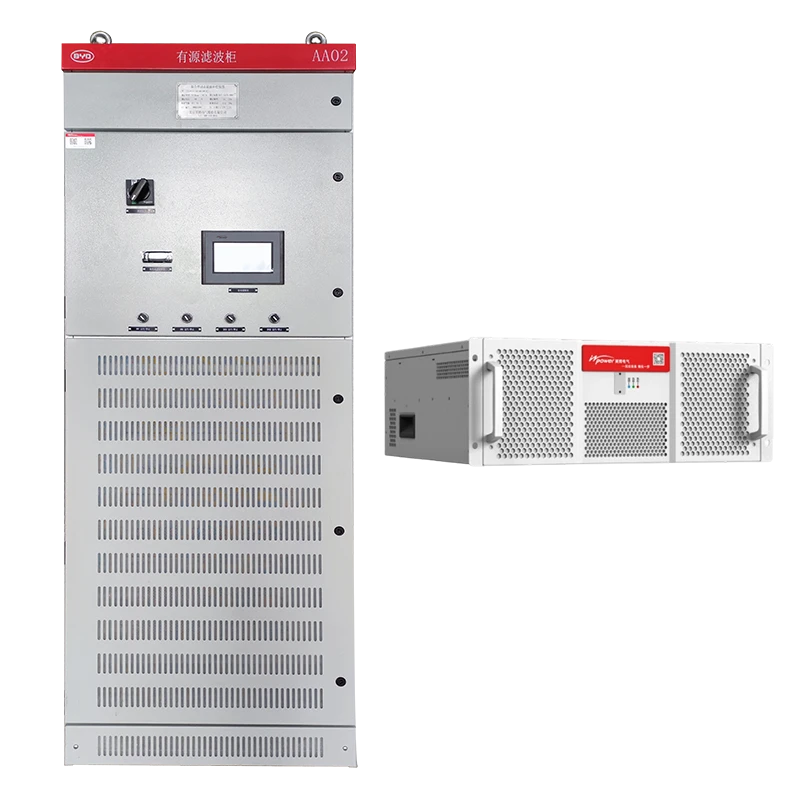

The LSVG Hybrid Dynamic Filtering and Compensation System integrates active power filtering, SVG compensation, and capacitor compensation under an intelligent control platform. By coordinating multiple compensation units, it provides optimized harmonic mitigation and reactive power management for improved power quality and system efficiency.

The system consists of circuit breakers, CTs, surge arresters, and configurable functional modules, allowing flexible configuration according to different application requirements.

Inquire Now

Product Description

The LSVG system combines dynamic and passive compensation technologies to achieve comprehensive power quality management. It enables coordinated harmonic filtering, reactive power compensation, and flexible capacity allocation through intelligent control strategies.

Product Features

01

Intelligent Control Platform

FPGA + ARM architecture enables high-speed data processing, real-time monitoring, and remote management.

02

Hybrid Compensation Strategy

Coordinates APF, SVG, and capacitor modules for optimized harmonic suppression and reactive power control.

03

Fast Dynamic Response

Functional units respond within <5 ms, with system-level response within <20 ms.

04

Modular Design

Independent airflow channels support flexible configuration, installation, and maintenance.

05

Reliable Protection System

Provides overcurrent, overvoltage, phase loss, and overtemperature protection with fault isolation.

06

Flexible Compensation Modes

Supports three-phase, single-phase, and hybrid compensation configurations.

Technical Specifications

Parameter Specification

Input Voltage

AC 400V ± 20% / AC 690V ± 15%

Wiring Method

3-phase 3-wire or 3-phase 4-wire

Response Time

≤ 5ms

Display Parameters

Voltage, Current, Active/Reactive Power, Power Factor, etc.

Cooling Mode

Intelligent Air Cooling

Structure

Cabinet-type

Protection Rating

IP30 (Customizable)

Power Consumption

< 2%

Compensation Rate

≥ 99%

Noise Level

< 60dB

Operating Temperature

–15℃ to +40℃ (Daily avg. ≤ 35℃)

Operating Humidity

15%–90% RH (Non-condensing)

Altitude

< 2000m

Cabinet Type

Compatible with various cabinet configurations and customizable to customer requirements.

System Protection

Over/Undervoltage, Overcurrent, Overtemperature, Phase Loss, Harmonic Overlimit, Interlock Alarms, Data Logging
