New Challenges Brought by High-Frequency UPS: How Can Data Centers Manage Capacitive Reactive Power?

For data centers, UPS (Uninterruptible Power Supply) is essential for ensuring the continuous operation of critical IT equipment. With the rapid growth of digital services and increasing data processing demands, high-frequency UPS systems are widely adopted for their high efficiency, compact design, and improved performance.

However, high-frequency UPS systems may exhibit capacitive characteristics under certain operating conditions, introducing capacitive reactive power into the distribution system. When multiple UPS units operate simultaneously, the accumulated capacitive reactive power can affect system power quality and increase the risk of resonance.

From Inductive Loads to Capacitive Loads

Traditional power systems are typically dominated by inductive loads such as transformers and motors, where capacitor banks are commonly used to compensate inductive reactive power.

High-frequency UPS systems use IGBT-based rectification technology and may introduce capacitive reactive power under certain conditions. As a result, data center distribution systems may face excessive capacitive reactive power rather than the traditional problem of insufficient reactive power.

This change requires a more flexible approach to reactive power management.

Why Traditional Capacitor Compensation Is Not Suitable

Conventional capacitor compensation provides capacitive reactive power to offset inductive reactive power. However, when a system already contains significant capacitive reactive power, adding more capacitors may further increase the capacitive characteristics of the system instead of improving the situation.

In addition, the combination of power transformers, high-frequency UPS systems, and nonlinear loads may create resonance risks. Harmonic currents and voltages can be amplified under resonance conditions, potentially causing equipment alarms, overheating, or protection device malfunctions.

Therefore, large-scale data centers require dynamic reactive power compensation capable of responding to changing system conditions.

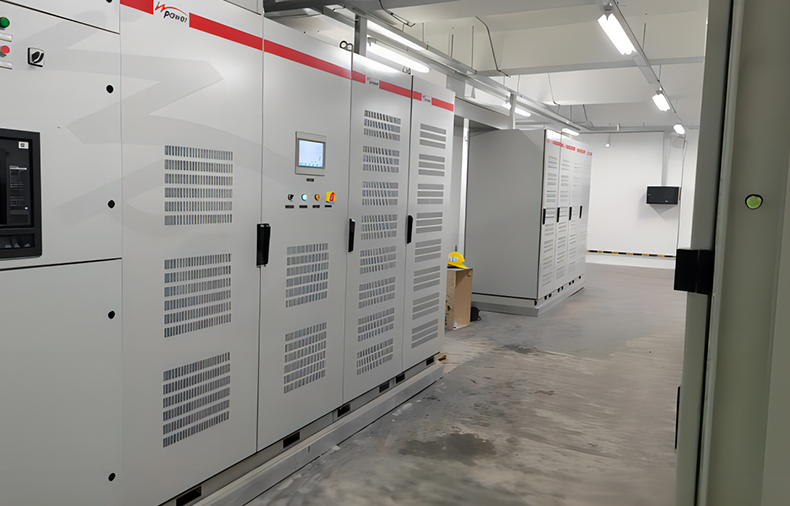

INPSVG: Bidirectional Dynamic Reactive Power Compensation

Static Var Generator (SVG) technology provides a flexible solution for managing reactive power.

Unlike conventional capacitor compensation, INPOWER INPSVG can provide both inductive and capacitive reactive power compensation, enabling continuous and bidirectional regulation according to real-time load conditions.

For data center applications, INPSVG can compensate for capacitive reactive power introduced by high-frequency UPS systems, improve reactive power balance, and help reduce potential resonance risks, creating a more stable power environment for critical IT equipment.

Building a More Reliable Power Environment for Data Centers

High-frequency UPS systems have significantly improved the efficiency and reliability of data center power supplies, while also introducing new requirements for power quality management.

For modern data centers, power reliability is not only about maintaining continuous operation during power interruptions, but also about maintaining a stable and optimized electrical environment throughout the distribution system.

INPOWER provides power quality solutions covering reactive power compensation, harmonic mitigation, and customized power quality management, helping data centers achieve safer, more stable, and more efficient power distribution.
